SUZHOU GAODING 110 KV MAIN SUBSTATION————STOP WATER LEAKING INTO THE MAIN SUBSTATION?
CABLE SEALING HRD

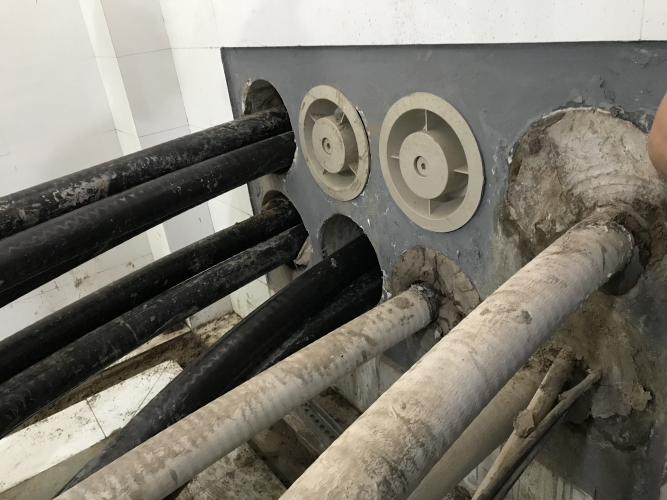

Suzhou Gaoding 110kV Main Substation Site
The ID of the hole is 300mm, and each hole requires sealing of 3 cables with a diameter of 95mm and 1 cable with a diameter of 33mm.

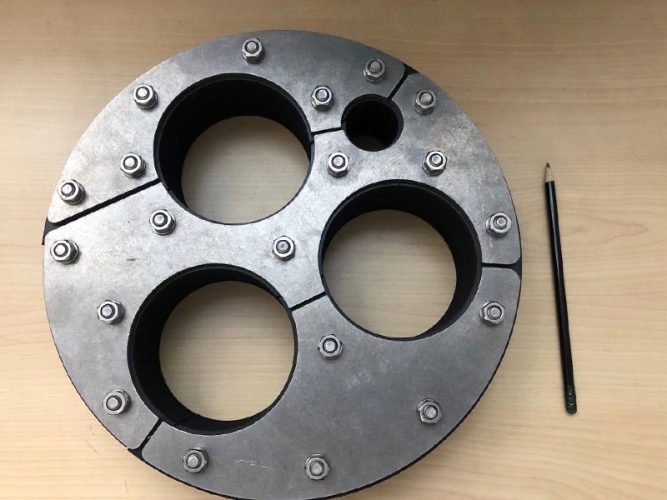

Customized cable sealing HRD 300-2G-3/95-1/33

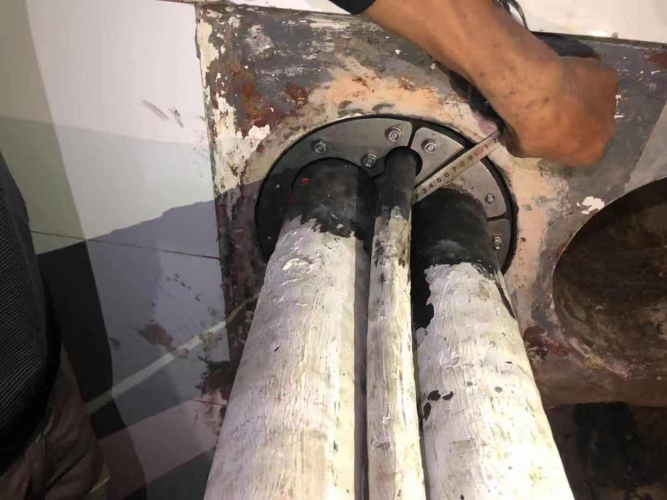

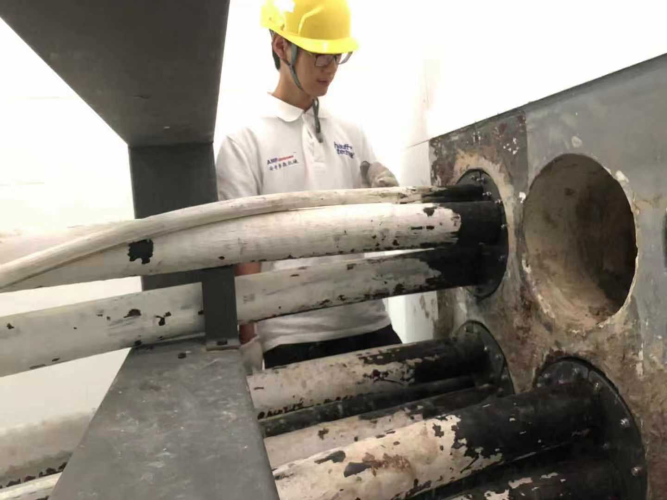

Install cable sealing HRD 300-2G-3/95-1/33
Use HRD 300-2G-3/95-1/33 cable seal to seal 3 power cables and 1 signal cable.

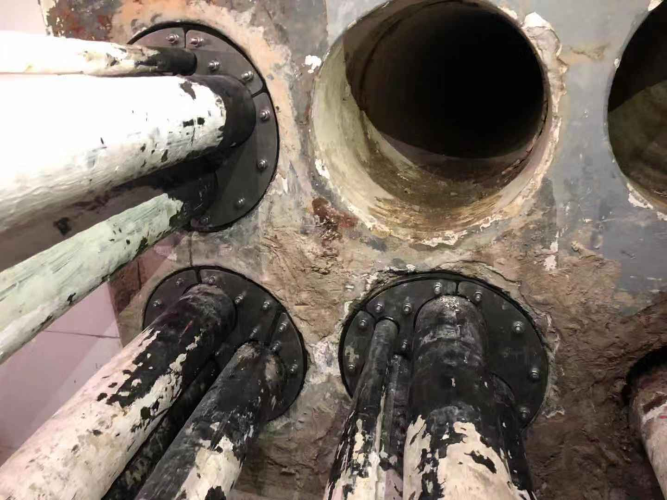

Cable sealing installation is complete.
Project information and solution provided by AMPdossen
PROJECT INFORMATION
| Project?time | 2019.9 |
| Location | Xiaoniangjing,?Kunshan?city,?Suzhou,?Jiangsu?Province |
| Owner | State?Grid?Jiangsu?Power?Supply?Company-Suzhou?Branch |
| Installation?company | Kunshan?Shunda?Electric?Power?Construction?Co.,?Ltd. |
SOLUTIONS BY AMPdossen
| Specification | Cable sealing systems |
| The solution | Use customized HRD 300-2G-3/95-1/33 to seal cables. |
| Products used | HRD 300-2G-3/95-1/3 |
