PN：10/16

DN: 40-1000

T[°C]:?-10 to +110

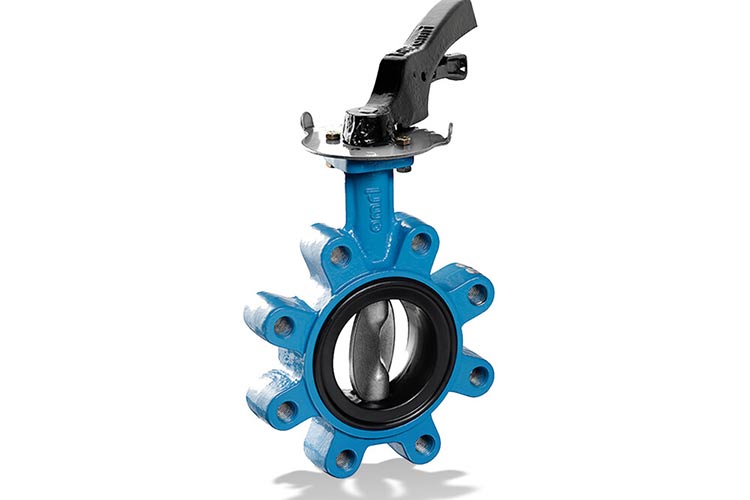

Centred-disc butterfly valve with ISO 5211 compliant square shaft end, sealed by elastomer liner (EPDM XC / XU or nitrile K), with lever, manual gearbox, pneumatic or electric actuator; semi-lug body (T2), full-lug body (T4). Body types T2 and T4 are suitable for downstream dismantling and dead-end service. Valve disc made of nodular cast iron or stainless steel. Connections to EN.

Application：

Spray irrigation systems

Domestic water supply

Water extraction

Hot-water heating systems

Air-conditioning

Washing plants

Paint shops

General irrigation systems

Swimming pools

Pressure boosting

Water treatment

Rainwater harvesting
